PUF Panels

Sandwich panels for Cleanroom or OT systems are designed according to the latest GMP norms/NABH. Our array of quality is Modular Wall Panels, Walk-able & Non-walk able ceiling Panels with in fill material of PUF. Each and every component of the systems is engineered & developed for easy installation and functioning. Our Modular technology is very reasonable at cost and more flexible at usage. This whole system can be assembled and demounted with more ease.

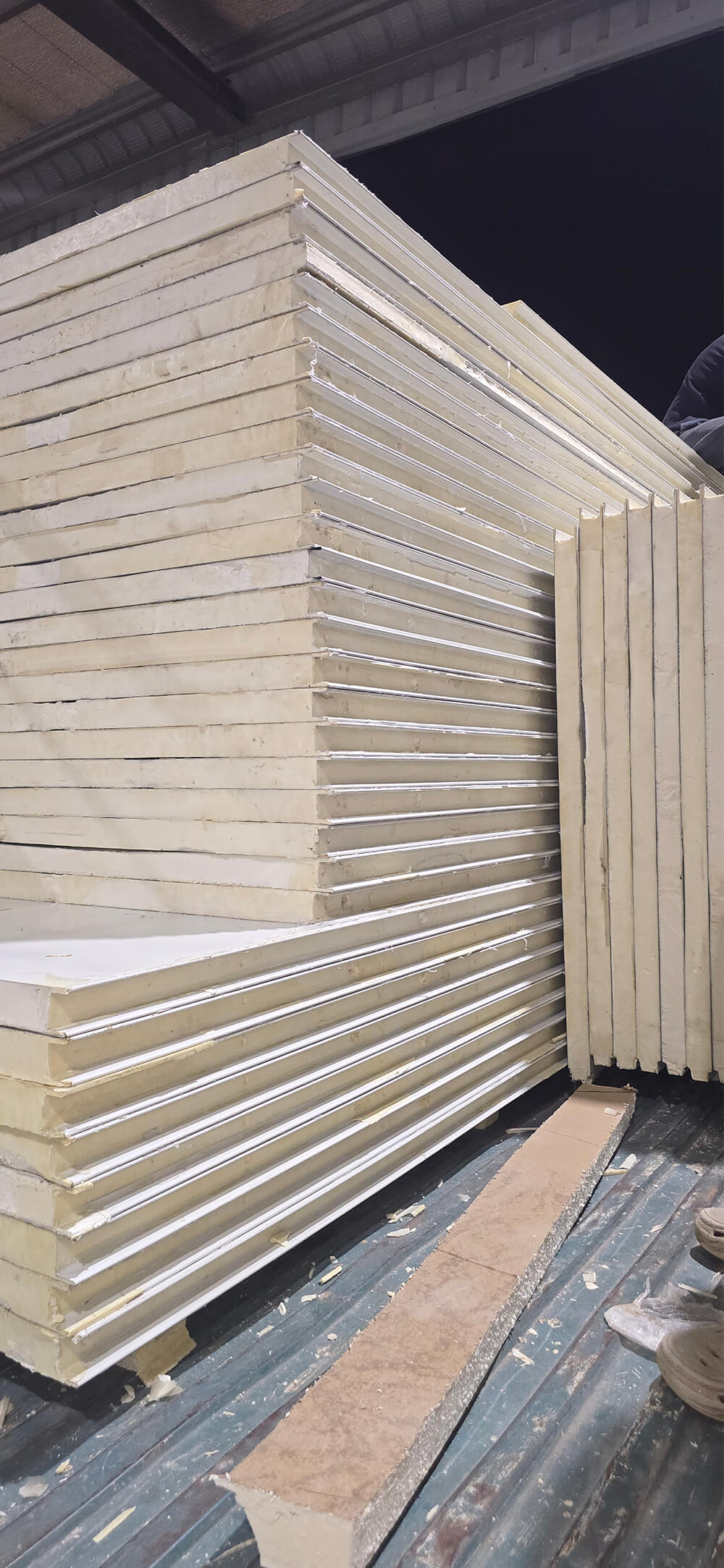

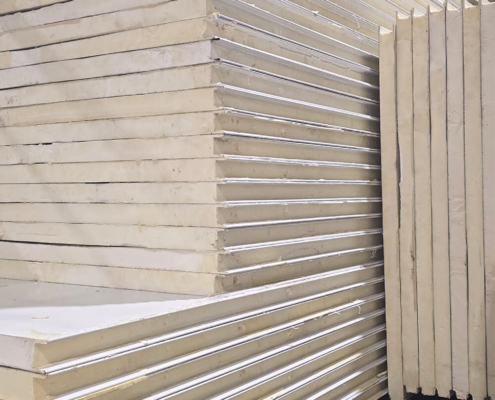

PUF PANEL-7

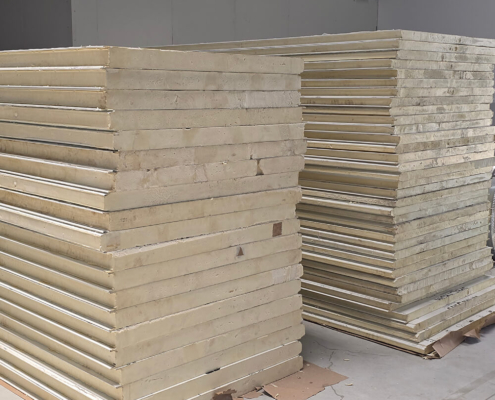

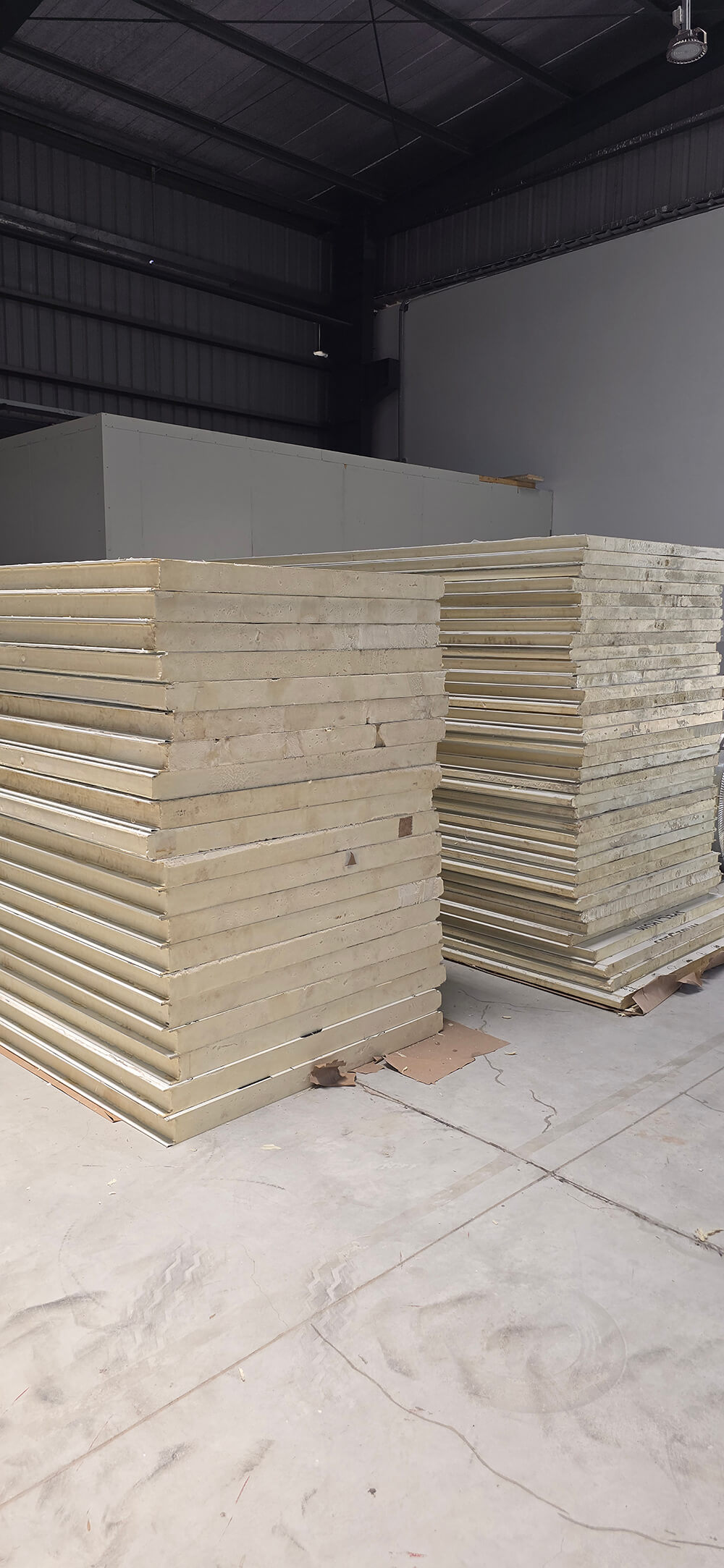

PUF PANEL-1

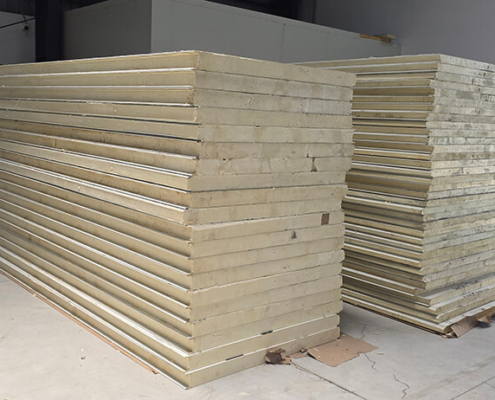

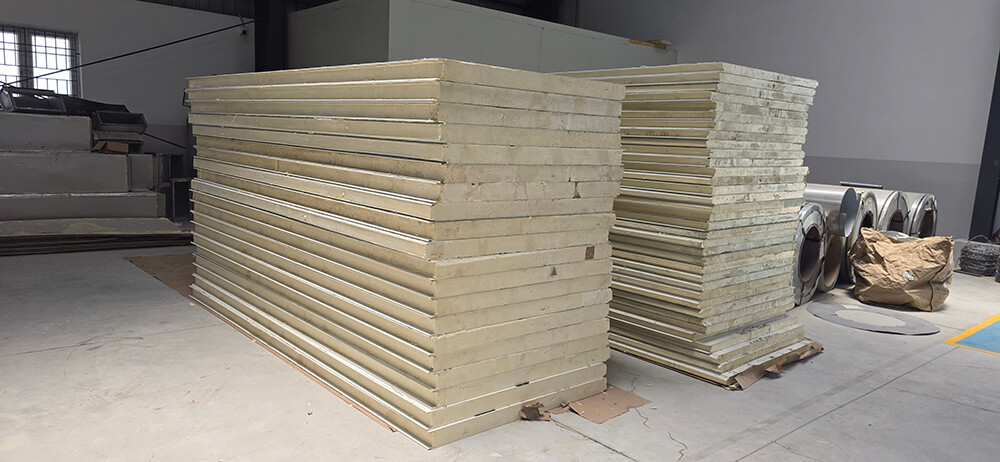

PUF PANEL-2

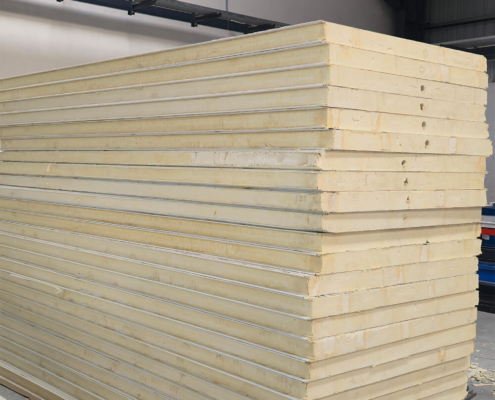

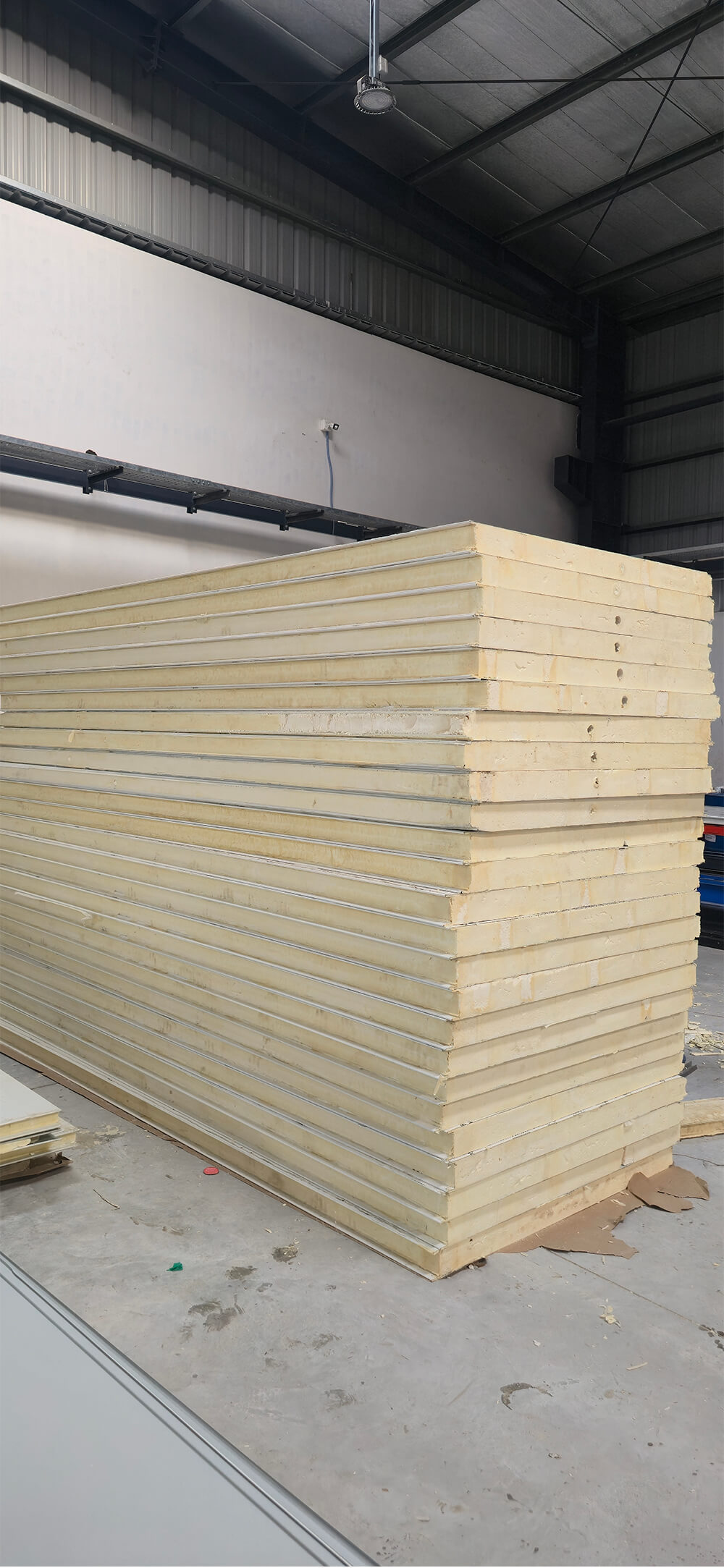

PUF PANEL-6

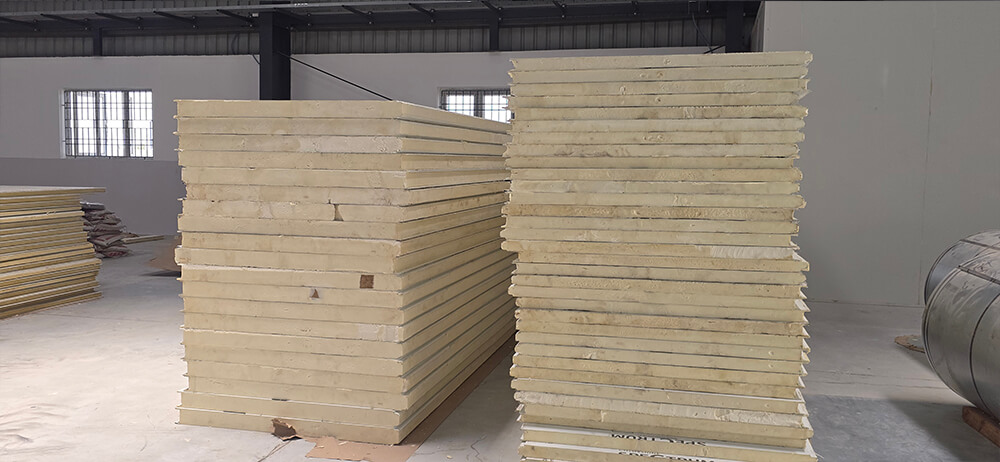

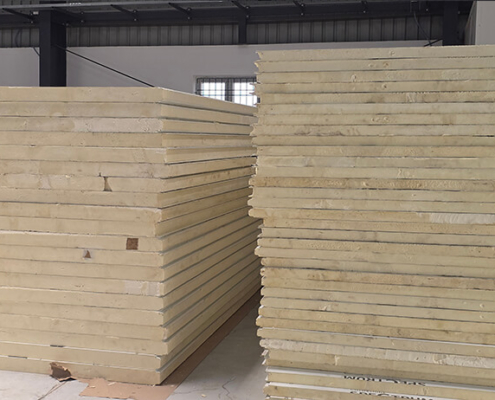

PUF PANEL-5

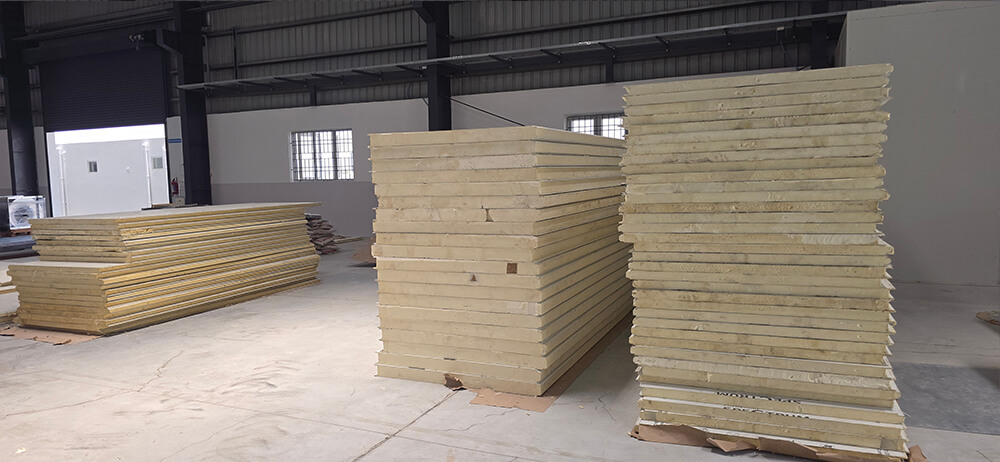

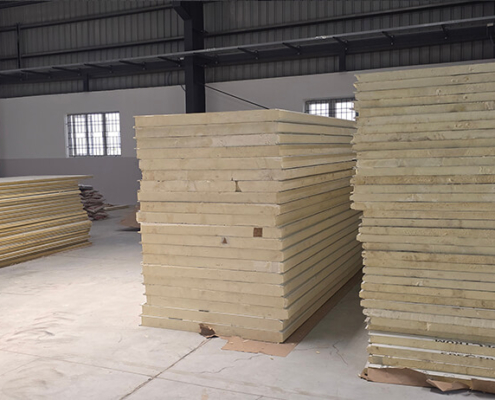

PUF PANEL-4

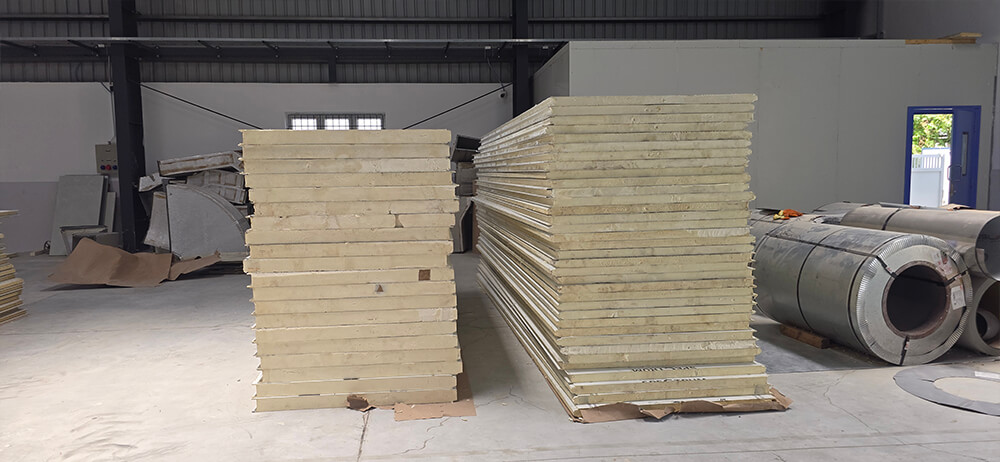

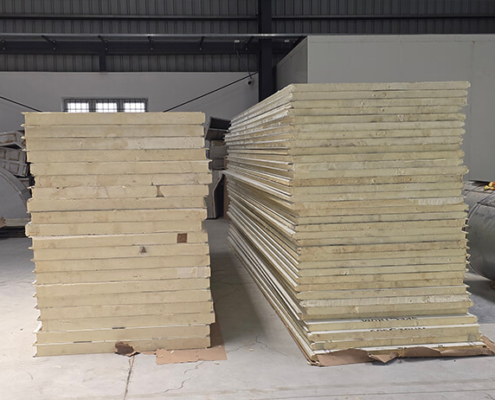

PUF PANEL-3

Technical Description

  • Optimal Temperature Control
    Maintain a stable indoor environment with precise temperature regulation, preventing fluctuations and ensuring efficiency.
  • High Thermal Insulation
    Enhance energy efficiency with superior thermal resistance, reducing energy loss and maintaining consistent temperatures.
  • Heat Insulation
    Reduce external heat impact, keeping indoor spaces cooler in summer and warmer in winter for better comfort and lower energy costs.
  • Energy Efficiency
    Enhances energy efficiency, helping to lower energy costs
    • High thermal performance
    • Superior fire resistance
    • Airtight construction
  • Low Thermal Transmittance
    Reduced heat flow lowers HVAC demand and energy loss.
  • Structural Rigidity
    High stiffness-to-weight ratio ensures dimensional stability.
  • Airtight Construction
    Limits air leakage to maintain controlled internal conditions.
  • Rapid Installation
    Factory-formed panels enable faster, precise on-site assembly
  • Long-lasting durability

Applications of PUF Wall Panel

  • Warehouses
    Reduces energy costs by improving temperature control.
  • Pharmaceutical Industries
    Protects sensitive drugs from temperature fluctuations.
  • Clean Room
    Reduces thermal loss, ensuring operational efficiency.
  • Oil and Gas Facilities
    Ensures energy-efficient operation in extreme temperatures.
  • Automotive Industry
    Maintains climate control for production and storage areas.
  • Pharma& healthcare
    controlled environments
  • Food processingand Beverage
    Hygienic processing rooms, Food Processing Industry, Milk & Dairy Industry, Seafood Industry, Meat & Poultry Industry, Floriculture Industry
  • Manufacturing Plants
    Enhances energy efficiency by maintaining optimal temperatures.
  • Industrial and Commercial Buildings
    They are used as insulated Ceiling and wall construction in factories, warehouses, workshops and commercial buildings, fast-expansion interiors.
  • Agriculture
    Poultry Farms, Grain Storage
  • Telecom & Data Centers
    Telecom Shelters, Data Centre Partitioning & Cladding
  • Defense & Government
    Dust-controlled rooms
  • Modular Construction
    Prefab Buildings, Site Offices, Temporary Accommodation Units
  • Clean Rooms & Hygienic Spaces
    Best in pharmaceutical departments, laboratory and electronics production locations where cleanliness is required and precision is imperative

Advantages of the PUF Panels

  • Integrated Wall & Insulation System
  • PUF wall panels act as both the external cladding and thermal insulation layer, reducing the need for separate masonry, plastering, and insulation assemblies
  • Large-format factory-fabricated panels enable quicker vertical enclosure of industrial and commercial structures compared to conventional wall construction methods.
  • Reduced Foundation Load
  • Lightweight insulated wall systems impose lower loads on foundations than traditional brick or concrete walls, supporting more efficient structural planning.
  • Controlled Internal Finishes
  • Pre-finished metal surfaces reduce the need for additional surface treatments in many industrial and warehouse applications.
  • High thermal insulation: U-values as low as 0.2 W/m²K, significantly reducing heating and cooling costs.
  • Fast Installation:Prefabricated and ready to install, saving you time and money.
  • Structural Strength:Provides a high load-bearing capacity in many applications.
  • Fire Resistance:Can be designed with a fire-retardant core to meet safety standards.
  • Moisture and Pest Resistance:The non-porous core resists mold, pests, and moisture ingress.
  • Aesthetic Finish:Available in various colors and finishes to suit your design preferences.

Quick Enquiry

Key Features of Advantage

  • Customizable
  • Flexible design
  • Strong Resistance
  • Environmental friendly
  • Adequate Insulation
  • Zero Maintenance
  • Energy savings
  • Light weight
  • Space saving
  • Fast and easy installation
  • High load bearing capacity at low weight
  • Easy repair and replacement in case of damage.
  • Long life and very low maintenance cost
  • Good sound insulation
  • Reasonable fire reaction and resistance
  • Quick and simple installation
  • Ideal insulation against heat
  • Solutions that are both economical and accessible
  • Increased visual appeal
  • qualities of acoustic insulation
  • high resistance to fire
  • superior durability and impact safety
  • Watertight and airtight functionality
  • Adaptable proportions to meet various requirements
  • Weatherproofing
  • resistance to termites and corrosion
  • Reusable, sustainable, and entirely recyclable

Progressive PUF Panels Non-Progressive (NP) PUF Panels

  • Profiled panel: With corrugated surfaces for added strength and aesthetic appeal.
  • Non Profiled panel: Without corrugated surfaces used to avoiding duct accumulation
  • Double-skin panels: various materiel of  PPGI/PPGL/SS304/SS316/AL/PP/PC/GI
  • Insulation: Various of PUF/PIR/ROOCKWOOL/HONEY COM

Clean Room Ceiling Panel

Support laminar airflow and are designed for minimal contamination trapping.

  • Deliver consistent finish and reliable integration with lighting, Terminal HEPA unit and other services.
  • Are lightweight yet strong, enabling efficient installation and long-term performance.
  • Meet clean-room classifications (ISO 5, 6, 7, 8 etc.) as per your project requirements.

Clean Room Wall Panel

  • Provide smooth, hygienic surfaces with minimal seams.
  • Feature core materials selected for fire-rating/Non fire rated,
  • hygiene or insulation requirements.
  • Flexibility in sizes, finishes and installation methods,
  • enabling a clean aesthetic and functional space.
  • Compatible with services
PreviousNext
12
PreviousNext
12

Progressive PUF Panels Non-Progressive (NP) PUF Panels

Progressive PUF Panels

Progressive PUF panels (tongue-and-groove) are installed sequentially, making them rigid, affordable, and ideal for permanent, fast construction.

  • Installation:Installed in a strict sequence (one after another) using tongue-and-groove joints.
  • Flexibility:Rigid; removing one panel usually requires dismantling adjacent panels.
  • Best For:Permanent layouts, fast assembly, and lower-cost projects.
  • Structure:Often lighter, providing excellent thermal insulation.
    Clean Pharma Panel +4

Non-Progressive (NP) PUF Panels

Non-progressive PUF panels allow individual panel removal for repairs or reconfigurations without disturbing adjacent panels, making them better for flexible, high-end cleanrooms (pharma, electronics) needing modifications.

  • Installation:Allows installation or removal of any single panel independently from any direction.
  • Flexibility:Highly flexible; allows for easy, independent removal for upgrades or repairs without dismantling the whole wall.
  • Best For:Cleanrooms requiring frequent maintenance, utility changes, or future layout modifications.
  • Features:Often features integrated cable pathways, concealed wiring, and flush-mounted accessories.

Technical Specification Of Puf Panel

Panel thickness available  50mm,60 mm,  80mm, 100mm, 120mm
Effective Width 1150mm
Sheet type PPGI, PPGL, SS304, SS316,GI-PU coated,GI,PC,PP
Sheet Thickness



 0.4mm/0.45mm/0.5mm/0.6mm/0.8mm/1mm
Length Available 1000mm – 6300mm
Density 40± 2kg/m3
Thermal Conductivity 0.024 – 0.03 W/m
Temperature Range -40+80℃
CFC / HFC Free From CFC / HFC
Bending Strength 4.0kg/cm2
Type of Sandwich PUF,PIR, Rockwool,Honey comb (Aluminum/Paper craft)
Adhesion Strength 2.9 kg/cm2 Foam to Steel
Heat Transfer Co-efficient -0.022W/M2*k
Pressure 0.10Mpa
Bending Strength 4.0kg/cm2
Compressive Strength 2.1 kb/cm2 at 10% deformation
Cubic Area Change =1%(-30 C – 100 C/96h)
Color  20 micronRAL 9010
Tensile Strength 3.7 kg/cm2
Top Coat 5 + 15 micron
Back Coat 5 + 5 micron
500h (ECCA TB) 100 h (ASTM D 2247)
Panel Length Customized as per requirement(Up to 6300mm)
Joinery Tongue-and-groove,Clean room M-section panel
Water Vapour Permeability 0.08-0.12 gms/hrm2
(at 90% RH & 38°C)
Sealing Joints sealed for continuous silicone
Paint Coatings Pre-painted, powder coated
Polyester primer 5 micron Non-toxic food-graded STANDARD polyester finish paint.

Types And Skin Specification

Pre-Painted Galvanised Sheets: (PPGI)

Coating Mass: 80 gsm /120 gsm / 180 gsm/275 gsm

Yield Strength:240Mpa/ 350 Mpa/550 Mpa

Sheet Thickness:0.30/0.35/0.40/0.45/0.47/0.50/0.55/0.60mm

Colours: Sky Blue/Off White/Mist Green/Brick Red/Dark Grey (regular moving colours)

Paint Finish: Glossy/Matte

Painting Thickness :(Top) 18 – 22 microns

Painting Thickness (Bottom) 5 – 7 microns

Pre-Painted Galvalume Sheets: (PPGL)

Coating Mass: 70AZ/150AZ

Yield Strength:550 Mpa/ 350 Mpa

Sheet Thickness: 0.40/0.45/0.47/0.50/0.55/0.60/0.65 /0.80/1mm

Colours: Off White

Paint Coating: RMP, SMP, PVDF

Paint Finish: Glossy/Matte Painting Thickness (Top) 18 – 22 microns Painting Thickness (Bottom) 5 – 7 microns

Finesse with Pre-Painted Galvalume Sheets

Pre-Painted Aluminum

Sheet Thickness : 0.40/0.56/0.71 mm

Colours: Off White

Paint Coating : RMP, SMP, PVDF

Sleek: Pre-Painted Aluminum Excellence

Stainless Steel

Sheet Thickness : 0.40/0.56/0.71 mm

Paint Coating :None

Timeless Strength and Superior Stainless Steel

Specifications

Yield Strength:240Mpa

Sheet Thickness : 0.5/0.6/0.8/1 mm

Thermal Conductivity (K-value)

  • PUF: ≤ 0.023 W/mK
  • PIR: ≤ 0.020 W/mK
  • FM PIR: ≤ 0.019 W/mK
  • Rockwool≤ 0.04 W/mK

Density

  • PUF Core: 40 ± 2 kg/m³
  • PIR Core: 40 ± 2 kg/m³
  • FM PIR: 42 ± 2 kg/m³
  • Rockwool: 95-100 kg/m³
